• Analog absolute pressure
• Electronic pressure sensor
• Electronic temperature sensor (optional)
• High accuracy
• IP 65 protection with cable gland
• Wide compensated temperature range
• Compatibility with corrosive fluids
• Primary element deposed on ceramic
monolithic block
• MV & HV oil level of transformers
• SF6 pressure inside tanks
• Gas control of automatic machinery
• Fluid controls of distribution and transmission pipe
| PRODUCT | PRESSURE RANGE | PRESSURE TYPE | TEMPERATURE RANGE | TECHNOLOGY | WETTED MATERIAL | ACCURACY | GAS CONNECTION | OUTPUT | COST | ||

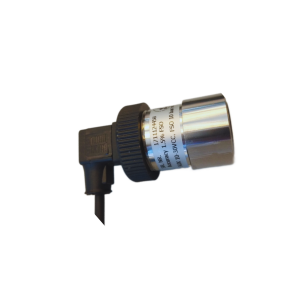

| SGM/A 43911769 Download |
| 1,6 bar…50 bar | GAUGE ABSOLUTE | -20…85°C | CAPACITIVE CERAMIC | CERAMIC Al2O3 96% | 1,5% OPTIONAL 1% | 1/4G | 0…10VDC 0…5VDC 4-20mA | LOW | |
| SGM/A/D 43931191 Download |
| 0bar…10 bar | DENSITY OF SF6 | -30…100°C | CAPACITIVE CERAMIC | CERAMIC Al2O3 96% | 1,00% | 1/4G | 4-20mA | LOW | |
| SGM_D 43931275 Download |
| 100 mbar…600 bar | GAUGE ABSOLUTE | -20…85°C | PIEZO RESISTIVE INOX | INOX 316L TANTALIUM TITANIUM | 0,5% OPTIONAL 0,25% or 0,1% | MULTIPLE | 0…10VDC 4-20mA Modbus RTU HART instrinsically SAFE | LOW | |
| SGM/TM Download |
| 100 mbar…1000 bar | GAUGE ABSOLUTE SEALED GAUGE | -40…125°C | PIEZO RESISTIVE INOX | INOX 316L HASTELLOY C-276 | 0,50% | MULTIPLE | passive transmitter output in mV | MEDIUM | |
| SGM/HP Download |
| 100 mbar…1000 bar | GAUGE ABSOLUTE SEALED GAUGE | -40…125°C | PIEZO RESISTIVE INOX | INOX 316L HASTELLOY C-276 | 0,20% | MULTIPLE | 0…10VDC 0…5VDC 4-20mA | MEDIUM | |
| SGM/P 43931276 Download |
| 200 mbar…100 bar | GAUGE ABSOLUTE | -20…85°C | PIEZO RESISTIVE INOX | INOX 316L | 0,25% | MULTIPLE | 0…10VDC 0…5VDC 4-20mA | LOW | |
| DIGITAL MANOMETER Download |
| -1…30 bar | GAUGE | -20..70°C | PIEZO RESISTIVE INOX | INOX316LSS | 0,25% | MULTIPLE | 4-20mA Modbus RTU | MEDIUM | |
| SGM/HC Download |
| 100 mbar…10 bar | GAUGE ABSOLUTE | -20…85°C | CAPACITIVE CERAMIC | CERAMIC Al2O3 96% | 0,25% OPTIONAL 0,5% | FLUSH | 0…10VDC 0…5VDC 4-20mA | MEDIUM HIGH | |
| SGM/C Download |
| 1,6 bar… 250 bar | GAUGE | -20…85°C | PIEZO CERAMIC | CERAMIC | 0,50% | MULTIPLE | 0…10VDC 0…5VDC 4-20mA | LOW | |
| SGM/S Download |
| 0,1-10 bar | GAUGE | -20…70°C | PIEZO RESISTIVE INOX | INOX 316L TANTALIUM HASTELLOY | 0,25% OPTIONAL 0,5% | MULTIPLE | 4-20mA Modbus RTU HART | LOW | |
| SGM/SD Download |
| 0,1-10 bar | GAUGE | -20…70°C | PIEZO RESISTIVE INOX | INOX 316L TANTALIUM HASTELLOY | 0,25% OPTIONAL 0,5% | MULTIPLE | 4-20mA Modbus RTU HART | LOW | |
